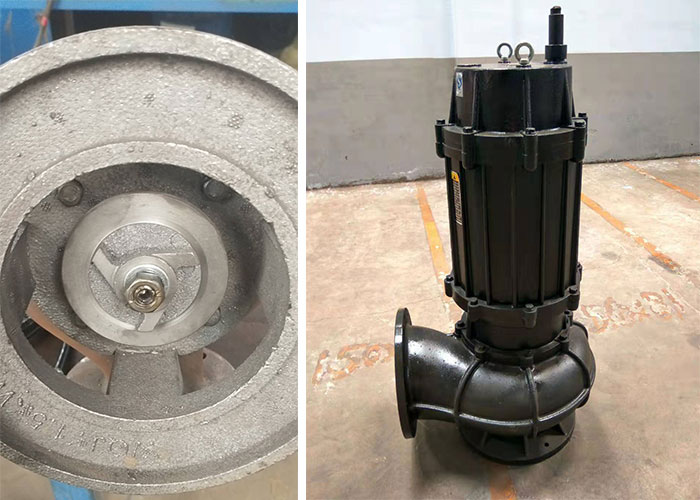

WQ-JY automatic mixture sewage pump

30 years professional submersible pump manufacturer in China

Now looking for global WQ-JY automatic mixture sewage pump distributor,with high quality pump,intimate service and big market prospects.

WQ-JY automatic mixture sewage pump

Home > Products > Submersible sewage pump > WQ-JY automatic mixture sewage pump

WQ-JY automatic mixture sewage pump

Flow:5-300m3/h
Lift:5-180m
Caliber:
Power:1.1-200kw
Temperature:< 60°C
Qualitycertificate:One year warranty and lifelong maintenance

Skype : dragonpumps dragonpumps
E-Mail : info@apkpump.com
Service hotline : 0086-371-56066186
Get Quotation    Leave Message

WQ-JY automatic mixing sewage pump overview:

WQ series automatic mixing sewage pump's motor is connected to three-phrase 380V-50Hz power source. They are used in waste water treatment system in cities, buildings, factories, mines, hospitals and so on. This pump is a combination of ordinary sewage pump and automatic mixing device. The mixing device generates strong mixing force when the pump's motor shaft spins. It stirs the sediments in the sewage pool and makes them suspend in water and then be drawn out by the pump. It makes the pump discharge sewage very fluently, without blocking. It completes drainage, cleaning up dirt and mud at one-time, saving operation cost. It is an advanced environmental friendly product, with obvious practical purpose.

Automatic mixing sewage pump's characteristics:

  1. When sewage pump works, it automatically stirs sediments at the bottom of the pool, preventing dirt from depositing. With this pump, you don't have to clean the sediments manually.
  2. It has specially designed impellers, which can cut the fibers and sundry into pieces or tear them apart.
  3. It uses external circulation cooling system to enable the pump to work in shallow water, so that the motor doesn’t have to be started frequently, thus prolonging the service life of motor.
  4. It is recommended by national standard atlas.
  5. It is a result of new high technology in Shanghai city.
  6. Used in municipal projects and construction sites.
  7. Used in exploration, mining, power plants to form a complete set together with other machines.
  8. Used in biogas digesters and farmland irrigation.

Automatic mixing sewage pump application:

1. Discharge heavily polluted waste water from factories and commercial construction sites.
2. Used in urban sewage treatment plant and drainage systems in hospitals and hotels.
3. Uptown sewage water discharge stations
4. Fire fighting system, drainage station, water supply equipment for water plant.
5. Sewage discharge in municipal engineerings and construction sites
6. Work as support equipment for exploration projects, mines, power stations
7.  To Pump sewage for methane tank in rural areas, to supply water for farm irrigation, to clean the slit in pools.

Working conditions:

  1. Based on the center of impellers, the pump shall not be placed deeper than 5m underwater.
  2. The temperature of the fluids being pumped shall not be more than 40°C.
  3. Fluids ph value 4~10. It shall not be used to pump highly corrosive fluids.
  4. The volume ratio of solid particles in the fluids should be under 20%.
  5. Fluids kinematic viscosity 7×10-7~23×10-6m²/s.
  6. Fluids density less than 1200 kg/m ³ .
  7. For WQ submersible pump, its motor must be immersed under water when it is running.

WQ-JY automatic mixture sewage pump model parameter

Model Flow Lift Power Diameter
250WQ-JY-600-9-3000-30 600 9 30 0
200WQ-JY-250-22-3000-30 250 22 30 0
150WQ-JY-100-40-3000-30 100 40 30 0
250WQ-JY-600-7-3000-22 600 7 22 0
200WQ-JY-400-10-3000-22 400 10 22 0
200WQ-JY-200-20-3000-22 200 20 22 0
150WQ-JY-300-15-2600-22 300 15 22 0
150WQ-JY-130-30-2600-22 130 30 22 0
200WQ-JY-250-15-3000-18.5 250 15 18.5 0
150WQ-JY-180-22-2600-18.5 180 22 18.5 0
150WQ-JY-150-26-2600-18.5 150 26 18.5 0
150WQ-JY-110-30-2600-18.5 110 30 18.5 0
150WQ-JY-65-40-3200-18.5 65 40 18.5 0
200WQ-JY-300-10-3000-15 300 10 15 0
200WQ-JY-250-11-3000-15 250 11 15 0
150WQ-JY-200-10-2500-15 200 10 15 0
100WQ-JY-100-22-2000-15 100 22 15 0
100WQ-JY-80-30-2000-15 80 30 15 0
200WQ-JY-300-7-3000-11 300 7 11 0
150WQ-JY-150-15-2500-11 150 15 11 0
150WQ-JY-250-6-2500-7.5 250 6 7.5 0
150WQ-JY-210-7-2500-7.5 210 7 7.5 0
150WQ-JY-150-10-2000-7.5 150 10 7.5 0
100WQ-JY-100-15-2000-7.5 100 15 7.5 0
100WQ-JY-80-20-2000-7.5 80 20 7.5 0
